Analysis Results

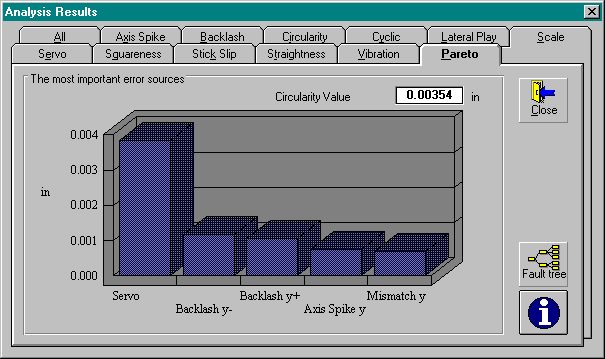

Measurement can be analysed thorougly and that way to obtain numerical values of different deviation types. These results are shown in tabbed control where the uppermost tab shows the most important deviations in Pareto graph. All the deviation types have their own page where can be found more information about the deviation, its influences and causes. There is also available an extensive on-line help, which supports a user and gives some tips. The program calculates the estimates of the following deviation types:

• Axis spike
• Backlash
• Circularity
• Cyclic error
• Lateral play
• Scale mismatch
• Servo balance
• Squareness
• Stick slip
• Straightness
• Vibrations
