Store, manage, compare and follow your machine tool measurements with MeasureBase. You can analyse an individual measurement, compare two separate measurements or follow long-term trend with MeasureBase. This program is web-based and so you can use it practically anywhere.
Provide measurement follow-up for your customers:
All measurements that you have made for your customer during years will be accessible through MeasureBase. Customer can view individual measurements, compare measurements to each other and observe possible trends in key figures. Only you as an administrator have access rights to save, edit and delete measurements. Your customer can view and compare measurement data.
Manage quality capability of your workshop:
Store measurements of your machine tools in MeasureBase. You can save measurements there despite who originally made them - you can even have an inspector to make it himself via web. You can view, follow and compare measurement results of both laser-interferometer and double ball bar (DBB) measurements.

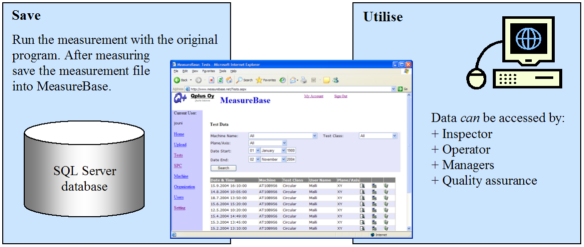

Steps to use MeasureBase:
Do the actual measurement and its analysis using the original measurement program of your measuring device. After the measurement is accomplished you can upload the measurement file into MeasureBase. When the file is uploaded, you can view either this individual measurement or compare it to earlier measurements. Inspector (or 'administrator' of the company) can create new user accounts for other people and thus allow them to view measurement results via web.
Supported devices:
- Agilent 5528 and 5529 laser-interferometer
- Renishaw QC10
- Heidenhain DBB110
- Heidenhain VM182
- Renishaw ML10
- Optodyne
- JENAer ZLM
- Cullam PolarGauge
- [other devices can be supported upon request]
Software technology:
- ASP.NET based
- Microsoft IIS - web server
- Microsoft SQL Server - database
- Database structure is based on NIST report Information Model for Machine-Tool-Performance Tests
- Can be used with any modern web-browser
Installation:
MeasureBase can be installed either on your own server or you can rent MeasureBase from the server of Qplus. If MeasureBase is installed on your server, it can offer services either inside your company (intranet) or in internet depending on web-server settings.
User support:
Software includes an on-line help explaining procedure at each page. Customers can also contact our support by email
Try MeasureBase on-line now!
User name: Demo Password: Demo
Download a brochure in PDF-format (2 pages)
Configuration requirements:
Any modern web-browser. Works best with Internet Explorer 6.0, Mozilla Firefox 1.0, Opera 7.5 and Netscape Navigator 7 or later.
