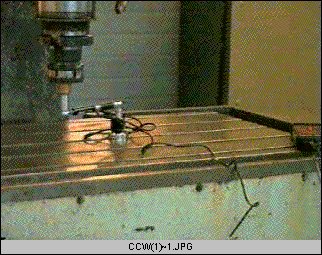

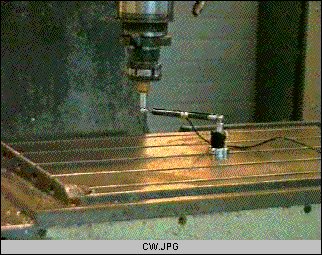

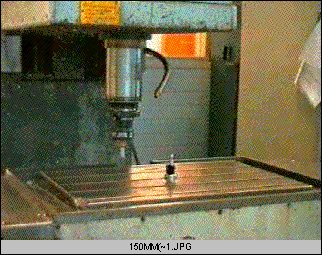

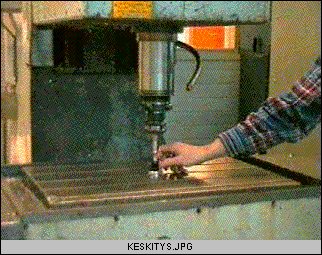

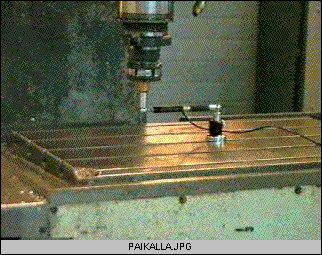

DBB Guidebook - NC-programDBB measurement could be done by the following NC-program. This program has been made for Fanuc series NC-controls and measuring parameters are: Radius of the ballbar: 150 mmRadius of the measuring circle: 150 mm Feedrates: 400 mm and 2000 mm Cyrcles: first CW and then CCW (both 360°) Measuring plane: XY By pressing underlined line, you can see the picture of machine tools current position. If you want the whole program for xy, yz and xz planes, press this %:150 (DBB program for Fanuc M15 XY-plane) M0 (check the zero point) G10G90L2P1 X0 Y-400. Z-300. G0G54 X0 Y0 G1 Z0 F800 M0 (centering the socket) G1G91 Z50. F500 G90G0 X-150. G0G91 Z-50. G90G1 X-151.5 M0 (adjust the DBB device) G17 G1 X-150. F400 G2 I150. J0 G2 I150. J0 G1 X-151.5 M0 (changing direction) X-150. G3 I150. J0 G3 I150. J0 G1 X-151.5 (changing feedrate) M0 G1 X-150. F2000 G2 I150. J0 G2 I150. J0 G1 X-151.5 (changing direction) M0 X-150. G3 I150. J0 G3 I150. J0 G1 X-151.5 M0 (end of program) |
